| Breite |
369
|
| Helligkeit |
300
|
| Höhe |
307
|
| Tiefe |
47,5
|
| Touchscreen |
Ja
|
| Verpackungsbreite |
387
|
| Verpackungstiefe |
455
|
| Verpackungshöhe |
145
|
| Paketgewicht |
5,2
|
| Gewicht |
3,6
|
| Reaktionszeit |
5
|
| Verpackungsinhalt |
AC adapter
|
| Konformitätsbescheinigungen |
CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
|
| Kompatible Betriebssysteme |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
| Internationale Schutzart (IP-Code) |
IP65
|

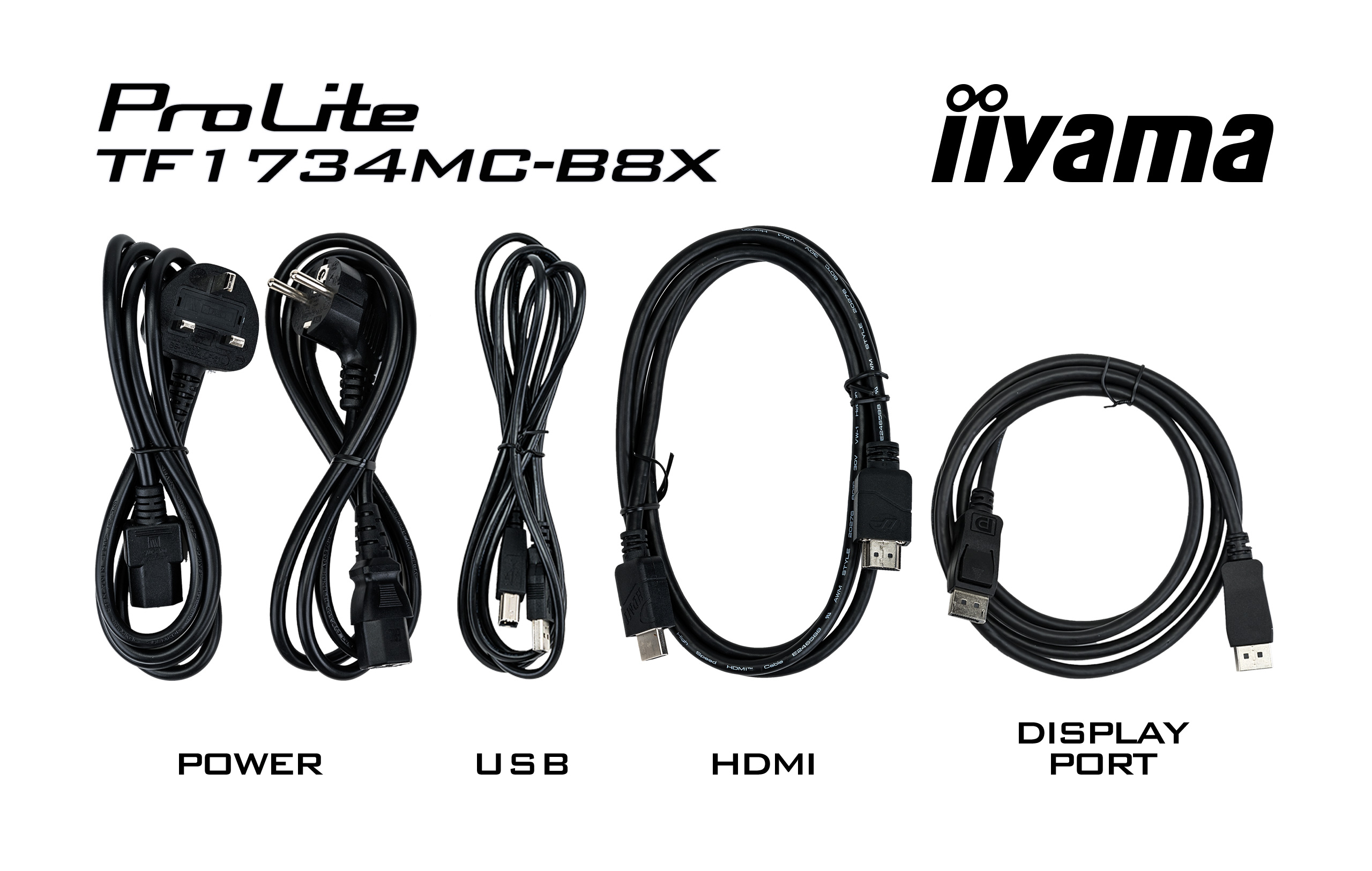

| Mitgelieferte Kabel |
AC, USB, HDMI, DisplayPort
|
| Nachhaltigkeitszertifikate |
ErP
|
| Bildschirmdiagonale |
43,2
|
| Display-Auflösung |
1280 x 1024
|
| Schnellstartübersicht |
Ja
|
| Stromverbrauch (Standardbetrieb) |
13
|
| Stromverbrauch (Standby) |
1,5
|
| On-Screen-Display (OSD) |
Ja
|
| Menüsprachen |
Deutsch, Englisch, Spanisch, Französisch, Italienisch, Japanisch, Niederländisch, Polnisch, Portugiesisch, Russisch
|
| AC-Netzadapter |
Ja
|
| HDCP |
Ja
|
| Netzteiltyp |
Extern
|
| Maximale Bildwiederholrate |
75
|
| Anzahl DisplayPort Anschlüsse |
1
|
| Anzahl VGA (D-Sub) Anschlüsse |
1
|
| Natives Seitenverhältnis |
5:4
|
| Panel-Typ |
TN
|
| Touchscreen Technologie |
Projizierts Kapazitivsystem
|
| Anzahl der gleichzeitigen Touchpoints |
10
|
| Kontrastverhältnis |
1000:1
|
| Bildwinkel, horizontal |
170
|
| Bildwinkel, vertikal |
160
|
| Anzahl der Farben des Displays |
16,7 Millionen Farben
|
| VESA-Halterung |
Ja
|
| Energieeffizienzklasse (SDR) |
E
|
| HDMI-Kabellänge |
1,8
|
| Stromkabellänge |
1,8
|
| Pixel Abstand |
0,264 x 0,264
|
| Bildschirmdiagonale (cm) |
43
|
| Panel-Montage-Schnittstelle |
100 x 100
|
| Netzteil Ausgangsspannung |
12
|
| Helligkeit (typisch) |
350
|
| DisplayPort Kabellänge |
1,8
|
| USB-Touch-Anschluss |
Ja
|
| Stromverbrauch (aus) |
0,3
|
| Horizontaler Scanbereich |
31 - 80
|
| USB Kabellänge |
1,8
|

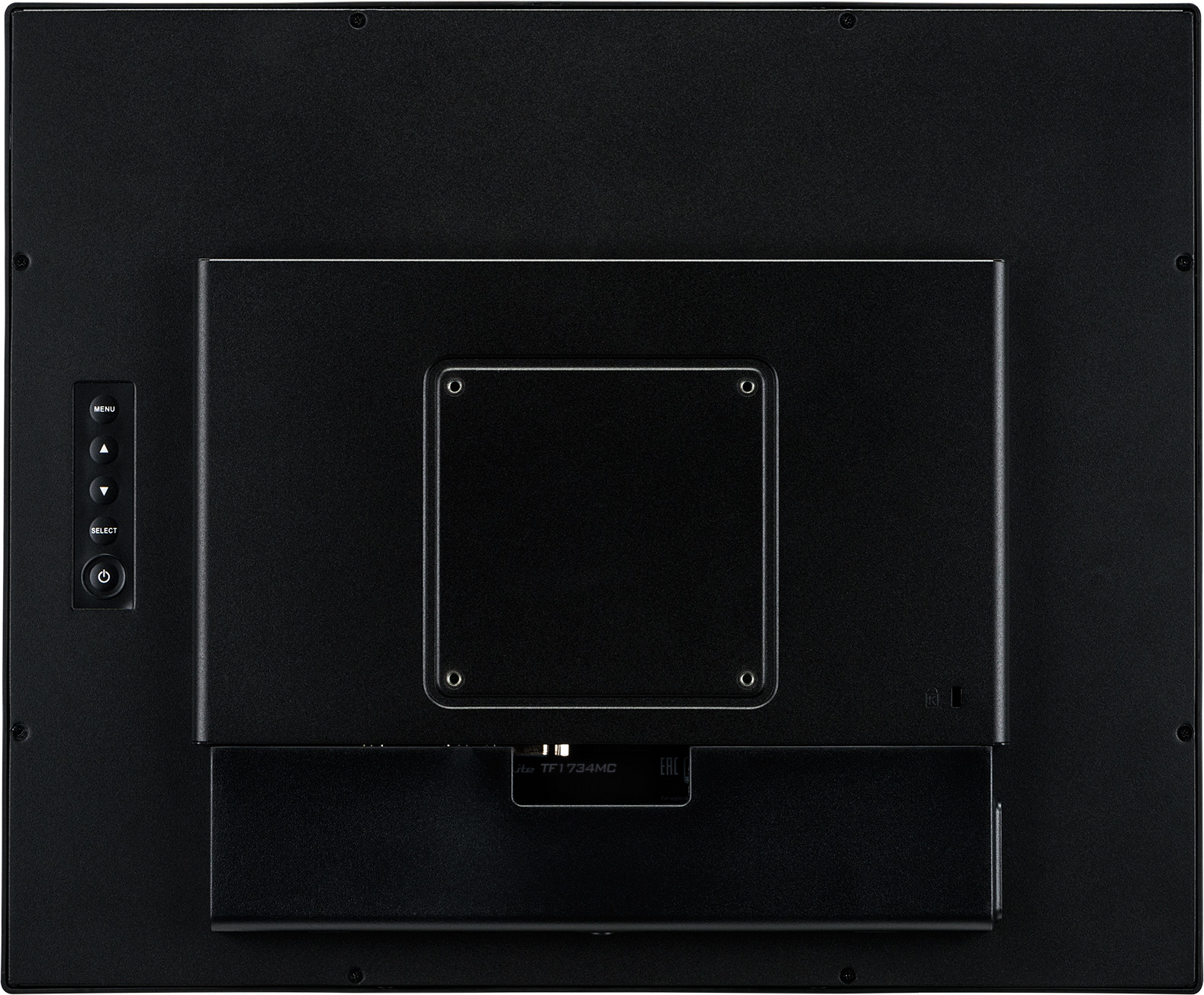

| Bedienfeld |
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
|
| Vorderer Rahmen |
Schwarz
|
| Gerätebreite (inkl. Standfuß) |
369
|
| Gerätetiefe (inkl. Standfuß) |
47,5
|
| Gerätehöhe (inkl. Standfuß) |
307
|
| Sichtbare Größe (horizontal) |
33,8
|
| Sichtbare Größe (vertikal) |
27
|
| Gewicht (inklusive Standfuß) |
3,6
|
| Handflächenabweisung |
Ja
|
| Glasdicke |
3
|
| Aktiver Displaybereich (B x H) |
338 x 270
|
| Benutzerkontrollen |
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
|
| Positionelle Genauigkeit |
2
|
| Berührungsmethode |
stylus, finger, glove (latex)
|
